Linux: The Big Picture

1. The big picture

1.1 Levels and layers of abstraction in a linux system

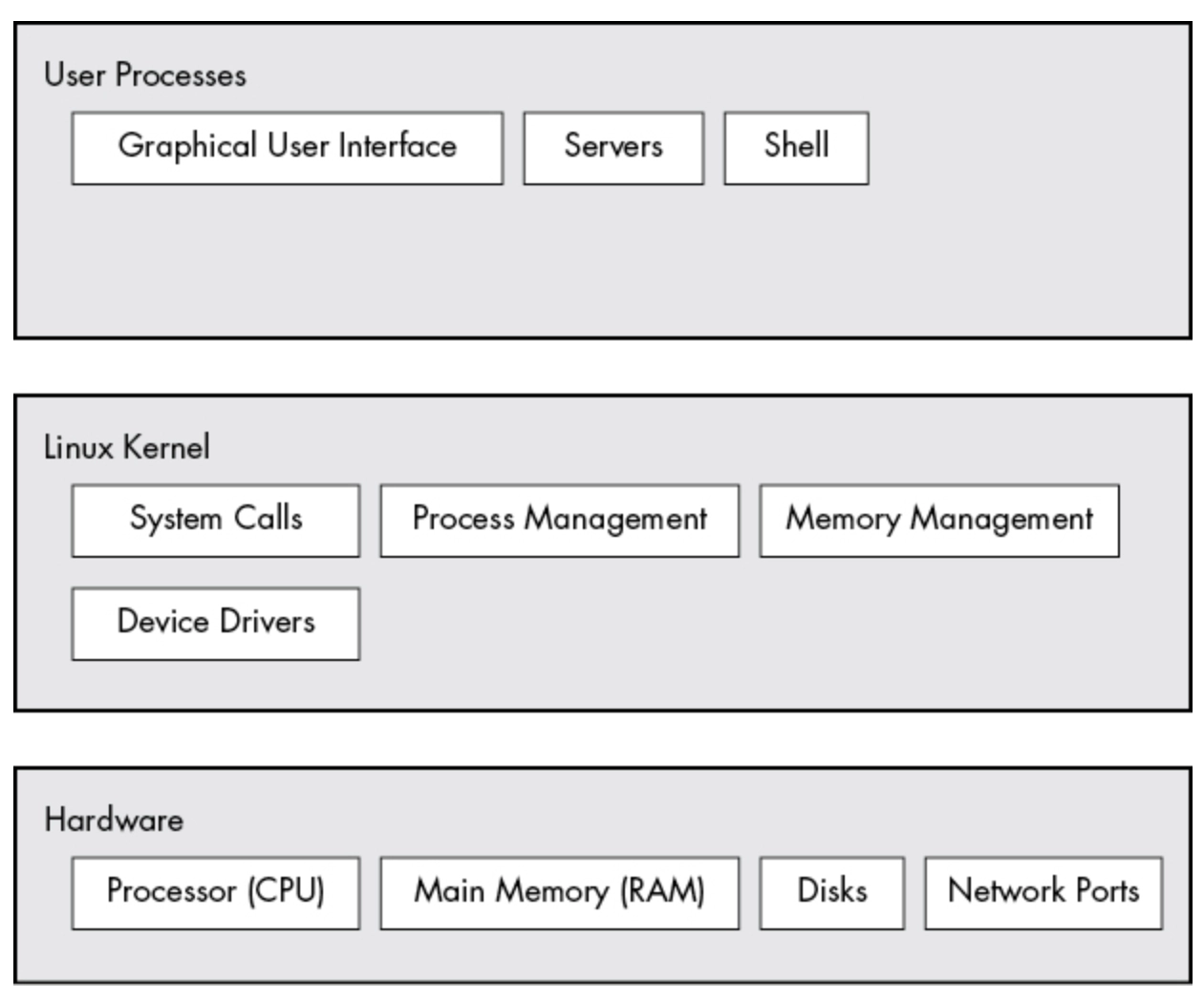

Figure 0: General Linux system organization

The kernel runs in kernel mode, user processes run in user mode
Code running in kernel mode has unrestricted access to Processor (CPU) and Main Memory (RAM)

This is powerful but dangerous privilege that allows kernel to easily corrupt and crash the entire system.
User mode restricts access to a (usually quite small) subset of memory and safe CPU operations
User space refers to the part of main memory that user processes can access

If a process makes a mistake and crashes, the consequences are limit and can be cleared up by the kernel

The Linux kernel can run kernel threads, which look much like processes but have access to kernel space. Example: kthreadd and kblockd

1.2 Hardware: understand main memory

It’s often easier to use abstract terms when talking about states. Instead of describing a state using bits, you describe something has done or is doing at the moment.

The process is waiting for input
The process is performing Stage 2 of its startup

“Because it’s common to refer to the state in abstract terms rather than to the actual bits, the term image refers to a particular physical arrangement of bits.”

1.3 The kernel

The kernel is in charge of managing tasks in four general system areas:

Processes: The kernel responsible for determining which processes are allowed to use the CPU
Memory: The kernel needs to keep track all memory - what is currently allocated to a particular process, what might be shared between processes, and what is free
Device drivers: The kernel acts as an interface between hardware (e.g., disk) and processes. It’s usually the kernel’s jobs to operate the hardware
System calls and support: Processes normally use system calls to communicate with the kernel

1.3.1 Process Management

You might have a web browser and a spreadsheet open on a desktop computer at them same time, but things are not they appear: the processes behind these applications typically do not run at exactly the same time.

Consider with a one-core CPU. Many processes may able to use the CPU, but only one process can use the CPU at any given time. Each process uses the CPU for another fraction of a second, the pause, then another process takes a turn, and so on.

The kernel is responsible for context switching. To understand, this is situation which process is running in user mode but its time slice is up:

The CPU interrupts the current process based on an internal time, switches into kernel mode, and hands control back to the kernel
The kernel records the current state of CPU and memory, which is essential to resuming the process that was just interrupted.
The kernel performs any tasks that might have come up during the preceding time slice
The kernel is now ready to let another process run. The kernel analyzes the list of processes that are ready to run and choose one.
The kernel prepares the memory for this new process and then prepare the CPU
The kernel tells CPU how long the time slice for new process will last.
The kernel switches the CPU into user mode and hands control of the CPU to the process

When the kernel run? It runs between process time slices during a context switch

Context Switching (The Bookmark)

The Task: Pausing one app to start another without losing progress.
The Action: Before swapping, the Kernel saves a "snapshot" (Context) of exactly where the app left off. When it’s that app's turn again, the Kernel "loads the bookmark" so it resumes instantly.

1.3.2 Memory Management

The kernel must manage memory during a context switch:

The kernel must have its own private area in memory that user processes can’t access
Each user process needs it own section of memory, and can’t access the private memory of another process
User processes can share memory
Some memory in user processes can be read-only
The system can use memory than is physically present by using disk space as auxiliary

1.3.3 Device Drivers and Management

The kernel’s role with devices is simple. A device can only accessible in kernel mode because improper access (user process asking to turn off the power) could crash the machine.

1.3.4 System Calls and Support

There are several kind of kernel features available to user processes. For example system calls (syscalls) perform specific tasks that user process alone can not do well or at all (opening, reading, and writing files all involves syscalls)

Two system calls:

fork() When a process calls it, the kernel creates a nearly identical copy of the process
exec() When a process calls exec(program) , the kernel loads and starts program , replacing the current process

Other than init, all new user processes on a Linux system start as a result of fork() , and most of the time, you also run exec() to start a new program instead of running a copy of an existing process.

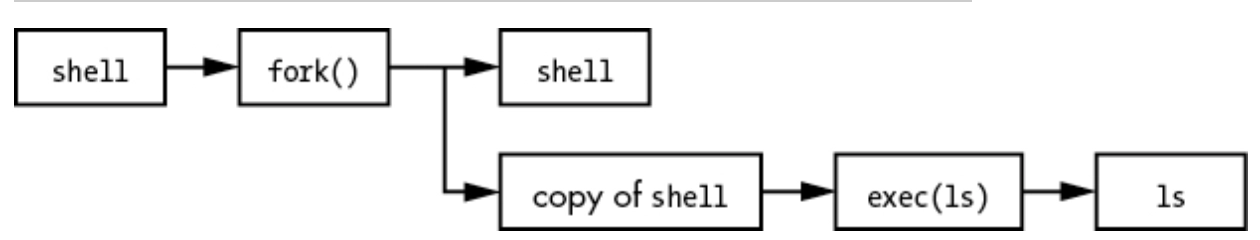

Figure 1: System calls

shell: When you open Terminal, one process names shell (bash, zsh) is running, waiting for a command
fork() : when you type ls , shell will not transform to ls . It calls fork() and will have copy of shell

Parent → the origin shell Child → a copy of shell → If the original shell transform to ls , when after you ran ls your terminal or shell will disappear.
exec(ls) : The copy of shell does not know how to list file so it calls exec(ls)

Parent → still the shell Child → now running ls → The ls process runs, lists the files to your screen, then terminates (calls exit )
wait() : parent waits for child (calls wait() or waitpid(). This means shell pause, wait for the ls process to finish. When the ls exits, kernel notifies the shell, wait() return and shell resumes
Back to the shell prompt: ls is done, shell prints prompt again, ready for next command.

1.4 User Space

User space is where application run: Your program (Go, Java, Python), Shell (bash, zsh), tools (ls, grep , vim ) → Runs outside the Linux Kernel.

This makes Linux safety, isolation, and security, app crash ≠ system crash, processes don’t interfere, and no direct hardware access.

Your backend crashes means only that process dies not the OS

User space	Kernel Space
Apps run here	OS core runs here
No direct hardware	Full hardware access
Isolated processes	Shared kernel memory
Safe	Powerful but risky

User space cannot access hardware directly, run privileged CPU instructions, and access kernel memory. If it try → crash (segfault)

User space talks to kernel through system calls (syscalls ). User space cannot read disk directly or send packets directly, instead it asks kernel:

write(1, "Hello\n", 6);

// user program -> syscall -> kernel -> result -> user program

Example with ls

ls runs in user space
It calls syscalls :
1. open() to open directory
2. getdents() to read file list
3. write() to print output

Kernel handles actual disk access, result returned to user space

Process lifecycle:

shell -> fork() -> exec() -> program runs -> exit()

# all happends in user space, except syscalls

Memory isolation: each process has its own memory process A ≠ process B, your Go app cannot read memory of another app

Real connection: Containers → isolated user space environments, shares the same kernel Performance: Too many syscalls means slow, can optimize by batching, async I/O, caching

User space = safe area where programs run, kernel does the dangerous work via syscalls

1.5 Users

A user in Linux is an identity used to run processes, own files, control permissions. A user is not just a human, it can also be a system/service account

Root user (superuser): username is root, user id (UID) is 0 - has full control over the system

read/write any file
kill any process
change system configuration

One wrong command can break the system 🙂

Regular users: created for human, limited permissions

run programs
access their own files
use system resources with limits

System users (service accounts): used by services (e.g., web server, database), usually no login shell

run services with restricted permissions

User identity: each user has username is human-friendly names (hoangndst) and UID (user id) numeric (1000). Linux actually uses UID internally not names.

/etc/passwd : stores basic user info

username:x:UID:GID:home_directory:shell
steven:x:1000:1000:/home/steven:/bin/bash

/etc/shadow : stores encrypted passwords, only readable by root

Permission and Ownership: Every file has owner (user), group, and permission

-rw-r--r-- 1 steven staff file.txt
# owner: steven
# group: staff

User and Processes: every process run as a user

hoangndst@hoangndst:~$ ps aux
USER         PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root           1  0.0  0.3  23268 14108 ?        Ss   Mar21   5:29 /usr/lib/systemd/systemd --system --deserialize=85 fixrtc
root           2  0.0  0.0      0     0 ?        S    Mar21   0:07 [kthreadd]
root           3  0.0  0.0      0     0 ?        S    Mar21   0:00 [pool_workqueue_release]
root           4  0.0  0.0      0     0 ?        I<   Mar21   0:00 [kworker/R-rcu_g]
root           5  0.0  0.0      0     0 ?        I<   Mar21   0:00 [kworker/R-rcu_p]
root           6  0.0  0.0      0     0 ?        I<   Mar21   0:00 [kworker/R-slub_]
root           7  0.0  0.0      0     0 ?        I<   Mar21   0:00 [kworker/R-netns]
root          12  0.0  0.0      0     0 ?        I<   Mar21   0:00 [kworker/R-mm_pe]
root          13  0.0  0.0      0     0 ?        I    Mar21   0:00 [rcu_tasks_kthread]
root          14  0.0  0.0      0     0 ?        I    Mar21   0:00 [rcu_tasks_rude_kthread]
root          15  0.0  0.0      0     0 ?        I    Mar21   0:00 [rcu_tasks_trace_kthread]

1.6 Conclusion

This article has provided an overview of the Linux system organization, process management, memory management, device drivers, system calls, user space, users, and permission and ownership. With the knowledge of the Linux system organization, you can understand how the Linux system works and how to use the Linux system effectively.
